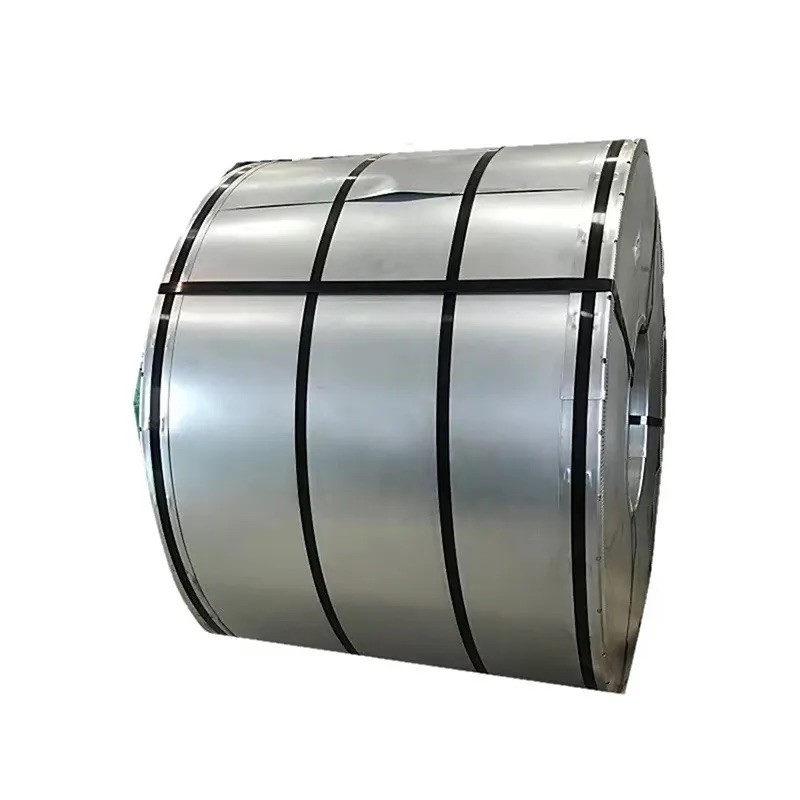

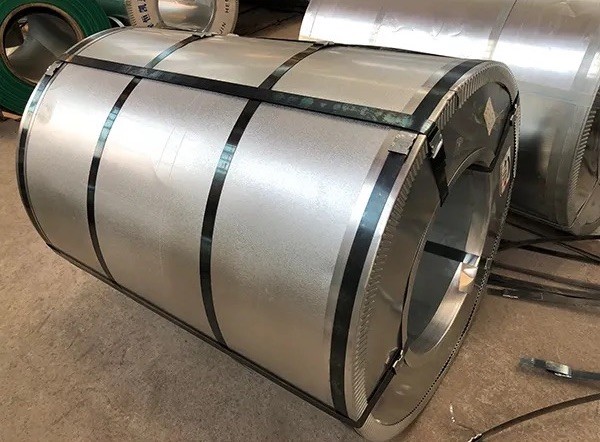

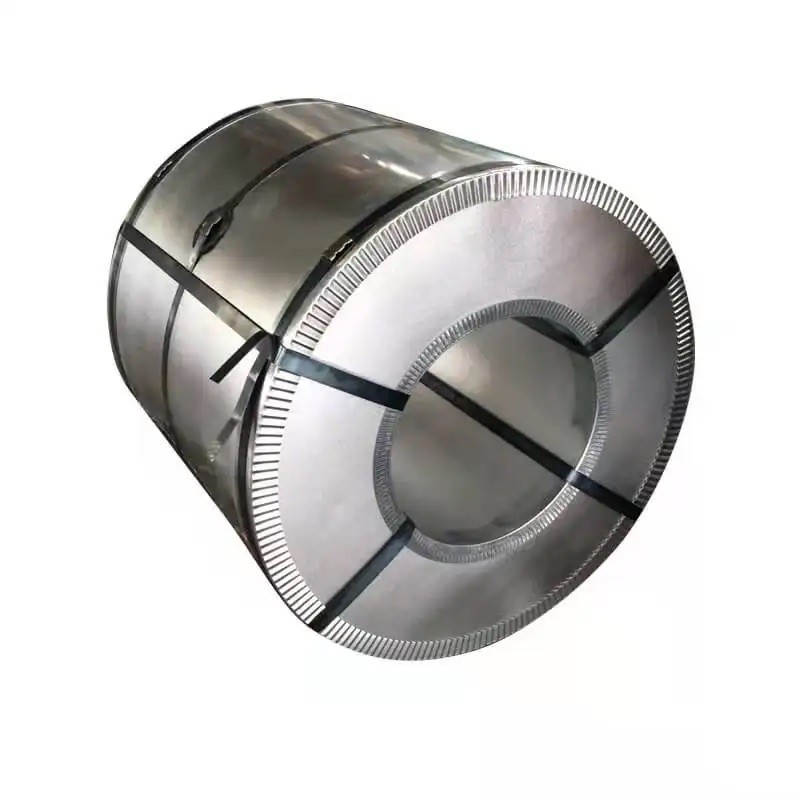

Hot Dip Rolled Galvanized Steel Coil Welding For Superior Against Rust
| Place of Origin | China |
|---|---|
| Brand Name | Tisco |
| Certification | ISO/ TUV/ SGS /BV and so on |
| Model Number | Galvanized Steel Coil |
| Minimum Order Quantity | 1/ Ton |
| Price | Negotiated |
| Packaging Details | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Galvanized Steel Coil | Surface Treatment | Galvanized Coated |
|---|---|---|---|
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching | Application | Boiler Plate, Making Pipes, Cutting Sheets, Making Small Tools, |
| Tolerance | ±1% | Spangle | Zero.minimum .Regular Big Spangle |
| Advantage | High Corrosion Resistance | Technology | Hop-dipped Galvanized |
| Type | Steel Plate, Galvanized Steel Sheet | Zinc Coating | 30g - 275g / M2 |
| Coil ID | 508 Mm - 610 Mm | ||
| Highlight | Rolled Galvanized Steel Coil,Against Rust Galvanized Steel Coil,Welding Hot Dip Galvanized Coil |
||
Product Description
Hot-Dip Galvanized Steel Coil For Superior Protection Against Rust
Advantages
Corrosion resistance: Galvanized steel coil is highly resistant to corrosion, which makes it ideal for outdoor applications and environments with high humidity.
Durability: Galvanized steel coil is strong and durable, which makes it suitable for use in applications where strength is essential.
Cost-effective: Galvanized steel coil is relatively inexpensive compared to other materials, making it a cost-effective choice for various applications.
Easy to work with: Galvanized steel coil is easy to form and fabricate, which makes it ideal for manufacturing a wide range of products.
Low maintenance: Galvanized steel coil requires minimal maintenance, which makes it a convenient choice for applications where regular maintenance is not feasible.
Recyclable: Galvanized steel coil is recyclable, which makes it an environmentally friendly choice for applications where sustainability is a priority.
| Item name | Galvanized steel coil / strip | ||
| Grade | DX51D+Z | S250GD+Z | |
| SGCC | DX52D+Z | S280GD+Z | |
| SGCD | DX53D+Z | S350GD+Z | |
| SGCE | DX54D+Z | S550GD+Z | |
| DX56D+Z | |||
| Thickness | 0.12 ~ 3.00 mm (cold rolled) | ||
| 1.20 ~ 4.60 mm (Hot-rolled ) | |||
| Width | 10 - 600 mm (strip) | ||
| 600 - 1250 mm (coil) | |||
| Tolerance | Thickness: ±0.01 mm | ||
| Width: ±2 mm | |||
| Coil ID | 508 mm - 610 mm | ||
| Coil weight | 3 - 8 ton or as client requirement. | ||
| Zinc coating | 30g - 275g / m2 | ||
| Spangle | Big spangle,Regular spangle,Mini spangle,Zero spangle | ||
| Surface treatment | Oil,Passivation, Chromated, Skin-passed, Anti-finger Print | ||
| HS code | code 72104900 | ||
| Application | Widely used in road, railway, civil construction, water conservancy construction; all kinds of machinery, electrical appliances, window protection and aquaculture, etc. | ||
| Package | Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet) | ||
| Delivery time | Within 15 workdays after deposit received | ||
| Remarks | Insurance per to Contract terms; | ||
| MTC will be handed on with shipping documents; | |||
| We accept the third party certificatation test. | |||
| STEEL GRADE | CHEMICAL COMPOSITION % | MECHANIC PROPERTY | C.B OF | COATING | ||||||
| C | Si | Mn | S | P | T.S | Y.S | E.L | COATING | ||
| x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | d=0 180° | G/M² | |
| JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK | Z60-150 |
| JIS G3302 SGCH | 12 | 10 | 21 | 18 | 8 | 680 | 650 | 20 | OK | Z60-150 |
| ASTM A653 CS.B | 29 | 30 | 60 | 35 | 30 | 386 | 250-380 | 20 | OK | Z60-275 |
| DX51D+Z | 20 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK | Z60-275 |
| G550 | 12 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | OK | Z60-275 |
Application
Delivery
FAQ
Q: What kind of work does your company do?
A: Our company is a professional manufacturer.
We mainly produces steel plate/pipe/coil/round bars
Q: What are the advantages of your company?
A:
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance based on BL copy or LC at sight.
If you have another question, please contact us as below
Q: What about your price?
A: Our price is very competitive because we are a factory.
Pls feel free to contact us if you are interested in our products.
Q: How long is your delivery time?
A: Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality
assurance.Usually the delivery time is within5 days after we received your deposit.
